Diagnose
Diagnostic Fault Finding
Maker-level scan tools connect to every control module, not just the main ECU. They pull live data, stored codes, and freeze-frame readings to find the exact root cause of the fault.
Every module
MOIAT-certified OEM-grade parts Free pickup
Range Rover Engine Repair Specialists in Abu Dhabi
Zenfo Auto Services is a MOIAT-certified, multi-brand automotive workshop in Mussafah trusted by hundreds of Range Rover owners across Abu Dhabi for precise engine work, full overhauls, and lasting results. Every job is handled by certified technicians using maker-level tools and OEM-grade parts.
Common Engine Problems in Range Rover Models
Tap a number on the engine or a fault in the list to see where it starts and what it feels like from the driver’s seat.
FAULT 01Timing chain stretchMetallic rattle at idleMisfires
Worn chains in TDV6 and SDV6 diesels create a metallic rattle at idle, cause misfires, and risk serious valve damage if the chain snaps under load.
High pressure inside the cylinder breaks the seal between the block and head. This lets coolant mix with oil, shown by white exhaust smoke and a milky film on the dipstick.
Plastic tanks, aging hoses, and weak water pumps break down faster when the heat stays above 45 °C for months. This cuts heat removal by up to 30% and puts extra strain on the climate system. Vehicles with cooling faults often need AC repair at the same time.
Carbon buildup in oil feed lines and worn bearings cut off oil to the turbo, causing blue or grey smoke from the tailpipe and a clear drop in boost. This is often paired with blocked flow that requires exhaust repair alongside the turbo work.
Common in the TDV6 family, pump failures stop oil flow to moving parts within seconds. This triggers bearing wear, hot spots, and even crankshaft fracture.
Blocked or leaking injectors throw off the air-fuel mix, causing rough idle, slow pickup, and up to 15% more fuel use across both petrol and diesel Range Rover variants.
Engine Repair and Rebuild Services at Zenfo Auto Services
Diagnose
Compression and Leak-Down Testing
Each cylinder is tested one by one to check its health. This shows whether the issue sits in the piston rings, valves, or head gasket before any part is taken out.
Cylinder by cylinderRepair
Timing Chain Swap
Stretched or failed chains are removed along with the tensioners. A new chain set is then fitted and re-timed to factory marks using dial-gauge checks for correct valve timing.
Dial-gauge timedRepair
Head Gasket Repair
Damaged gaskets are replaced after the cylinder head is checked for warping and skimmed flat. New stretch bolts and fresh coolant finish the job.
Skimmed flatRepair
Turbo Overhaul
Worn bearings, bad seals, and blocked oil feed lines are fixed, or the full turbo unit is swapped. Boost-pressure testing under load follows every turbo job to confirm output.
Boost-testedRepair
Cooling System Service
Radiator flush, new thermostat, water pump swap, and hose changes bring the running temperature back to the 90-105 °C range needed for safe driving in Abu Dhabi summer traffic.
90–105 °CRepair
Fuel Injector Servicing
Ultrasonic cleaning restores the spray pattern and fuel mist. Each injector is then tested on a bench to confirm it puts out within 2% of its rated volume before going back in.
±2% flowRepair
Oil Leak Repair
Valve cover gaskets, oil pan seals, timing cover gaskets, and rear main seals are replaced with OEM-spec parts. This stops oil from spreading to belts, sensors, and wiring.
OEM-spec sealsRepair
Crankshaft and Bearing Work
Main and big-end bearing journals are measured, polished or reground, and fitted with new shells. This brings back the oil gaps that keep the crank safe from heat damage and cracking.
New shellsRebuild

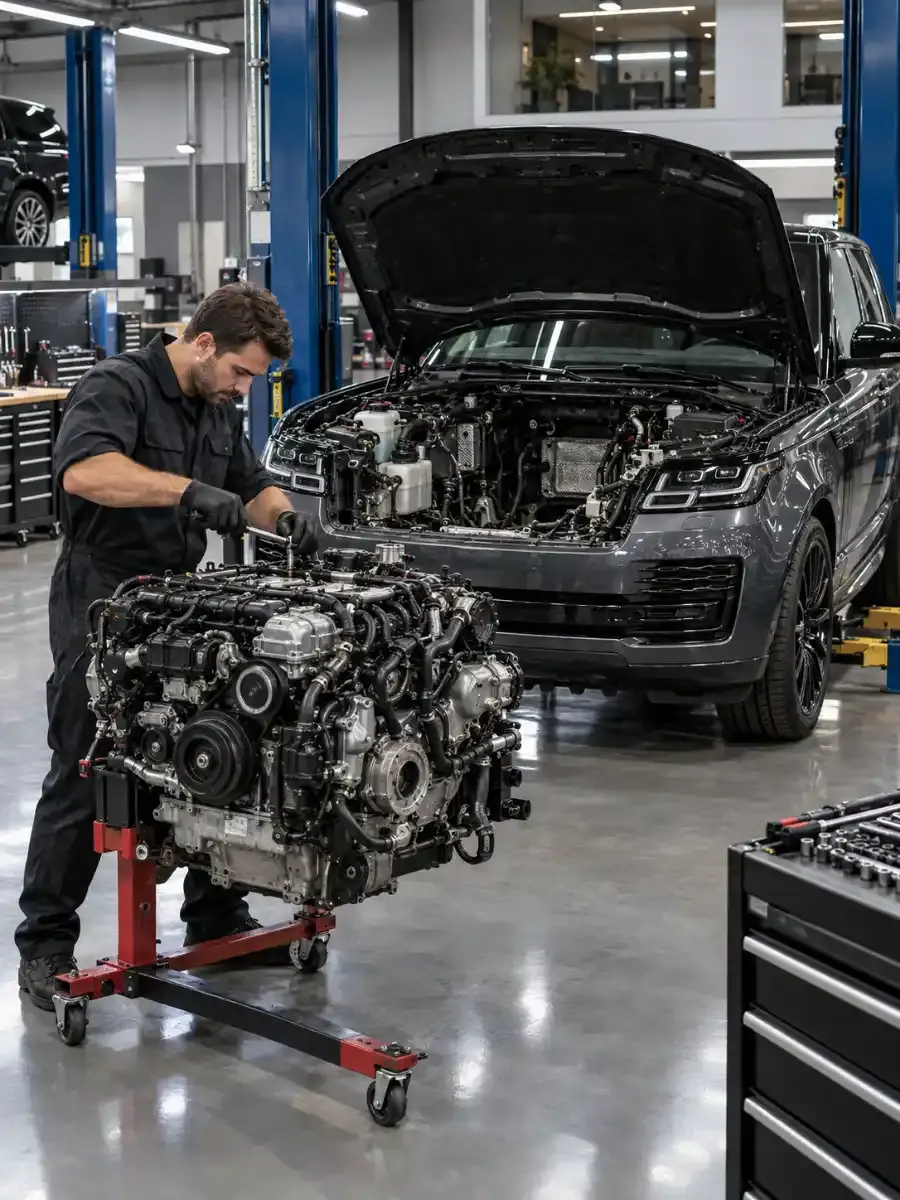

Complete Unit Rebuild
The block is stripped on a bench. Pistons, rings, bearings, and gaskets are replaced, and the bores are honed to bring back compression within 5% of the factory spec.
Within 5% compressionRebuild
Full Powertrain Swap
A rebuilt or new engine matched to the vehicle’s code is fitted with full part transfer, fresh fluids, and a road test. This is the right choice when the block is cracked past repair limits.
Code-matchedRebuild
Post-Repair Reset
Once the hands-on work is done, the ECU is reset, live values are cleared, and a final exhaust test confirms the vehicle meets UAE rules before workshop handover.
UAE emissionsWhy Range Rover Owners Choose Zenfo Auto Services
MOIATRegistered UAE workshop
Experienced Certified Team
10 years of hands-on work on luxury vehicles, with every technician trained on petrol, diesel, and mild-hybrid types using maker-level methods.
OEM and Approved Parts
Genuine JLR parts and approved options sourced from licensed suppliers, with full part-number tracking noted on every invoice.
Clear Itemised Pricing
Written quotes are approved before any work starts. No hidden labour charges, no surprise part add-ons, and no work done without your say-so.
MOIAT-Certified Garage
Fully registered under the UAE Ministry of Industry and Advanced Technology, with climate-controlled workshop bays that guard both the vehicle and technician accuracy all year.
Full Service Records
Photo reports, stamped service books, and digital records come with every job. These support resale value and a clear service history for future owners.
Free Pickup and Delivery
Every confirmed booking includes free pickup and delivery across Abu Dhabi, so Range Rover owners never lose a day to workshop runs.
From Diagnosis to Delivery: Our Step-by-Step Process
- 01Written quote
Initial Check
An advisor at our Mussafah garage reviews your symptoms, runs a quick scan, and gives a written quote covering parts, labour, and timeline before any work starts.
- 02Live data
Detailed Diagnostics
A full-system scan, live-data review, and pressure testing pin down the exact fault. This step tells apart real mechanical wear from sensor or software issues.
- 03Your sign-off
Approved Strip-Down
Faulty parts are removed, checked, and pictured. Nothing is replaced or machined until you sign off on the full cost breakdown.
- 04Torqued to spec
Controlled Rebuild
New gaskets, seals, and fluids go in. Every bolt is torqued to spec, and the built-up unit is run at idle and under load inside the workshop.
- 05Road test
Handover and Records
You get a digital report with before-and-after photos, and a parts list, along with a short road test to confirm that all is well.
Engine Rebuild vs. Full Replacement
When a Rebuild Applies
A rebuild keeps the original block by replacing worn parts like pistons, rings, bearings, gaskets, and timing parts. Bore and journal sizes are brought back through precise honing. This costs 30-50% less than a full swap and adds 100,000-150,000 km of usable engine life to sound blocks. Both petrol and diesel engine types gain the same benefit from this method.
When a Replacement Is the Right Call
A full swap is needed when the block is cracked, the bores are scored past machining limits, or the crank has broken. A broken crank often harms the torque converter and gearbox parts too so that transmission repair may be needed at the same time. A rebuilt or new unit usually takes 3-5 working days for supply, fitting, and testing.
Full replacement100%
Rebuild50–70%
100k–150k kmengine life added by a rebuild
3–5 daystypical replacement turnaround
5–7 daysfull overhaul turnaround
Petrol and Diesel Variants We Service
Our workshop techs have hands-on time with every Range Rover powertrain option:
Petrol Diesel Mild hybrid
AJ1263.0 L V6 Supercharged Petrol340
AJ1335.0 L V8 Supercharged Petrol510–575
AJ200P2.0 L Ingenium 4-Cylinder Turbo Petrol300
TDV6 / SDV63.0 L TDV6 / SDV6 Diesel258–306
AJ200D2.0 L Ingenium 4-Cylinder Turbo Diesel180–240
I6 MHEV3.0 L Ingenium Inline-6 Mild Hybrid400
TDV84.4 L TDV8 Diesel340
0100200300400500600
Each one has its own torque specs, oil grade needs, and scan settings. Our tools carry the full JLR (Jaguar Land Rover) software to access every module in every model year.
Preventive Steps to Extend Engine Life
Usual interval Abu Dhabi interval
Engine oil
Air filter
Shorter intervals offset faster oil breakdown above 45 °C and fine desert dust.
Oil-change intervals
Book a proper oil change every 8,000 km instead of the usual 12,000 km, using fully synthetic oil that meets the JLR STJLR.03.5005 spec.
Coolant system flush
Swap the coolant once a year and fit a new thermostat every 80,000 km to stop flow blockage and overheating during Abu Dhabi’s peak summer months.
Belt and hose checks
Look at all rubber parts at every service visit. Hoses and seals harden and crack twice as fast in lasting heat above 45 °C.
Air filter swap
Change the filter every 15,000 km rather than 30,000 km to shield the turbo and injectors from fine sand and dust.
Scan schedule
Run a full-system scan every 20,000 km to catch stored fault codes before they grow into bigger problems or cause follow-on damage.
Coolant type
Use only OAT (Organic Acid Technology) coolant approved by Land Rover. Mixing types weakens the rust protection and speeds up deposit buildup in the cooling lines.
Same-week slots
Book Your Range Rover Engine Diagnostic in Abu Dhabi
Call our Mussafah workshop or email the make, model, and fault details. An advisor confirms the likely problem area and gives a written quote before any work starts. Same-week slots are open for urgent cases.
Frequently Asked Questions
Still unsure about a symptom? Our advisors answer the phone and WhatsApp during workshop hours.
Ask an advisor WhatsAppHow long does a typical Range Rover engine overhaul take?
A full overhaul takes 5-7 working days, based on parts supply and machining needs. Smaller jobs like timing chain, thermostat, or injector replacement are done in 1-3 days.
Do you use genuine JLR parts?
Yes. Genuine parts and approved OEM-grade options are both kept in stock at our garage. The price gap is explained before you choose.
Is it safe to drive with a check-engine light on?
A steady amber light means a stored fault. Book a scan within 48 hours. A flashing light means an active misfire or catalyst harm, so pull over right away and call for a tow.
How does Abu Dhabi’s extreme heat affect oil life?
Heat above 45 °C speeds up oil breakdown, drains anti-wear agents, and thins the oil layer that guards bearing surfaces. Shorter change cycles and fully synthetic oils rated for high-HTHS thickness cut this risk.
Do you offer pickup and delivery?
Free vehicle collection and return across Abu Dhabi is available with a confirmed booking.
Do you inspect used vehicles before purchase?
A full pre-purchase inspection covers compression health, leak status, fluid condition, and complete fault history. This gives buyers a clear view of the powertrain state before committing.
